Lugs and Ferrules

Size mm²	(Ø)A ±0.3	(Ø)C ±0.3	J ±3	D ±1	E ±0.2	K ±1	H ±1	G ±1
2.5	2.4	4.0	18	10	4.2	2	6	5
4	3.1	4.8	20	10	4.2	2	6	5
6	3.8	5.5	23	10	4.2	3	9	6
10	4.5	6.2	25	12	6.4	3	9	6
16	5.4	7.1	36	12	6.4	4	9	7
25	6.8	8.8	40	13	6.4	4	11	10
35	8.2	10.6	48	15	6.4	5	11	10
50	9.5	12.4	59	18	6.4	6	13	11
70	11.2	14.7	61	21	12.8	7	13	12
95	13.5	17.4	68	25	12.8	10	14	14
120	15.0	19.4	73	28	12.8	10	14	14
150	16.5	21.2	86	30	13.0	11	17	17
185	18.5	23.5	89	34	16.2	12	17	17
240	21.0	26.5	104	38	16.2	14	21	21
300	23.5	30.0	115	43	16.2	15	23	23
400	26.8	34.8	136	50	17.0	18	26	26
500	30.0	39.0	148	56	21.0	20	28	28
630	35.0	45.0	172	65	21.0	22	33	33
800	39.0	50.6	209	73	-	17	40	35
1000	43.0	56.2	245	81	-	20	45	45

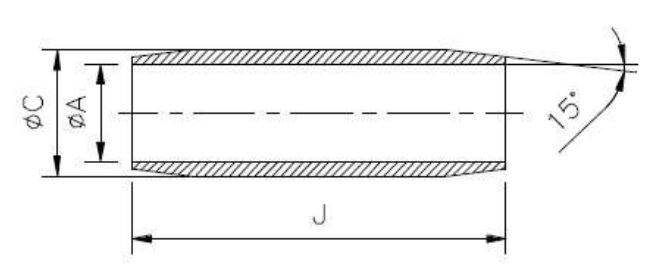

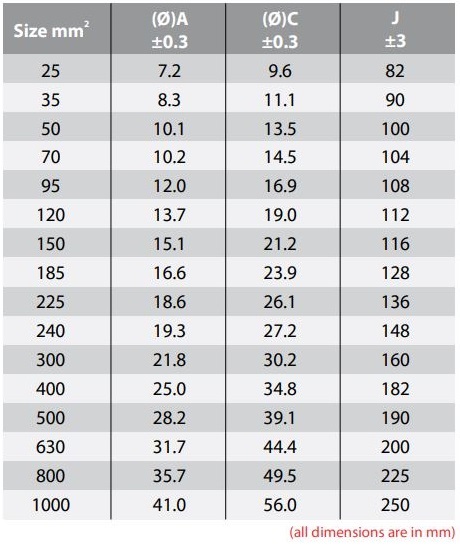

Size mm²	(Ø)A ±0.3	(Ø)C ±0.3	J ±3
2.5	2.4	4.0	18
4	3.1	4.8	20
6	3.8	5.5	20
10	4.5	6.2	30
16	5.4	7.1	40
25	6.8	8.8	48
35	8.2	10.6	54
50	9.5	12.4	60
70	11.2	14.7	60
95	13.5	17.4	68
120	15.0	19.4	70
150	16.5	21.2	76
185	18.5	23.5	85
240	21.0	26.5	100
300	23.5	30.0	118
400	26.8	34.8	120
500	30.0	39.0	125
630	35.0	45.0	144
800	39.0	50.6	170
1000	43.0	56.2	200
