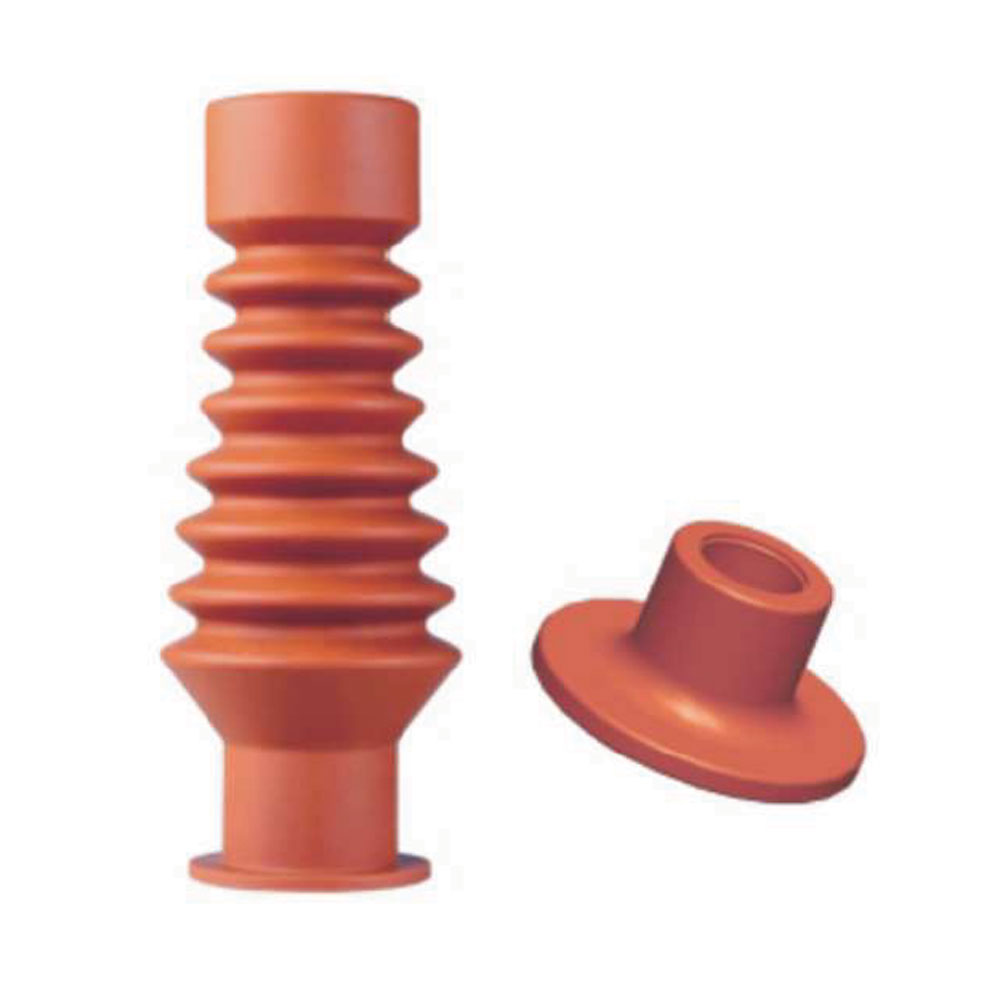

Medium Voltage Cold Applied Bushing Protection Boots

Medium Voltage Cold Applied Bushing Protection Boots

Enquire Now

Application

  • Con√∂guration 35-400mm at 7.2/17.5 for straight boots and 46-70mm up to 15kV boots
  • Mainly applied for RMU and cable branch system
  • In compliance with IEC-60502-4

Features

  • Simple and easy installation
  • Longer shelf life
  • Unique bushing adaptor provides superior moisture ingress protection
Medium Voltage Cold Applied Bushing Protection Boots
Medium Voltage Cold Applied Bushing Protection Boots

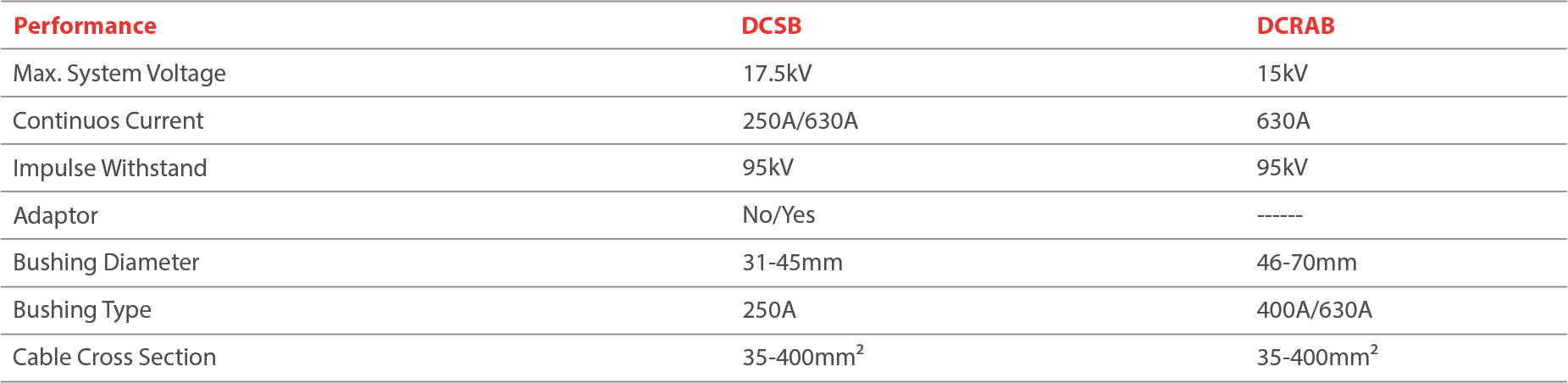

Technical Data for Medium Voltage Cold Applied Bushing Protection Boots

Performance DCSB DC AB
Max. System Voltage 17.5kV 15kV
Continuos Current 250A/630A 630A
Impulse Withstand 95kV 95kV
Adaptor No/Yes -------
Bushing Diameter 31-45mm 46-70mm
Bushing Type 250A 400A/630A
Cable Cross Section 35-400mm2 35-400mm2
