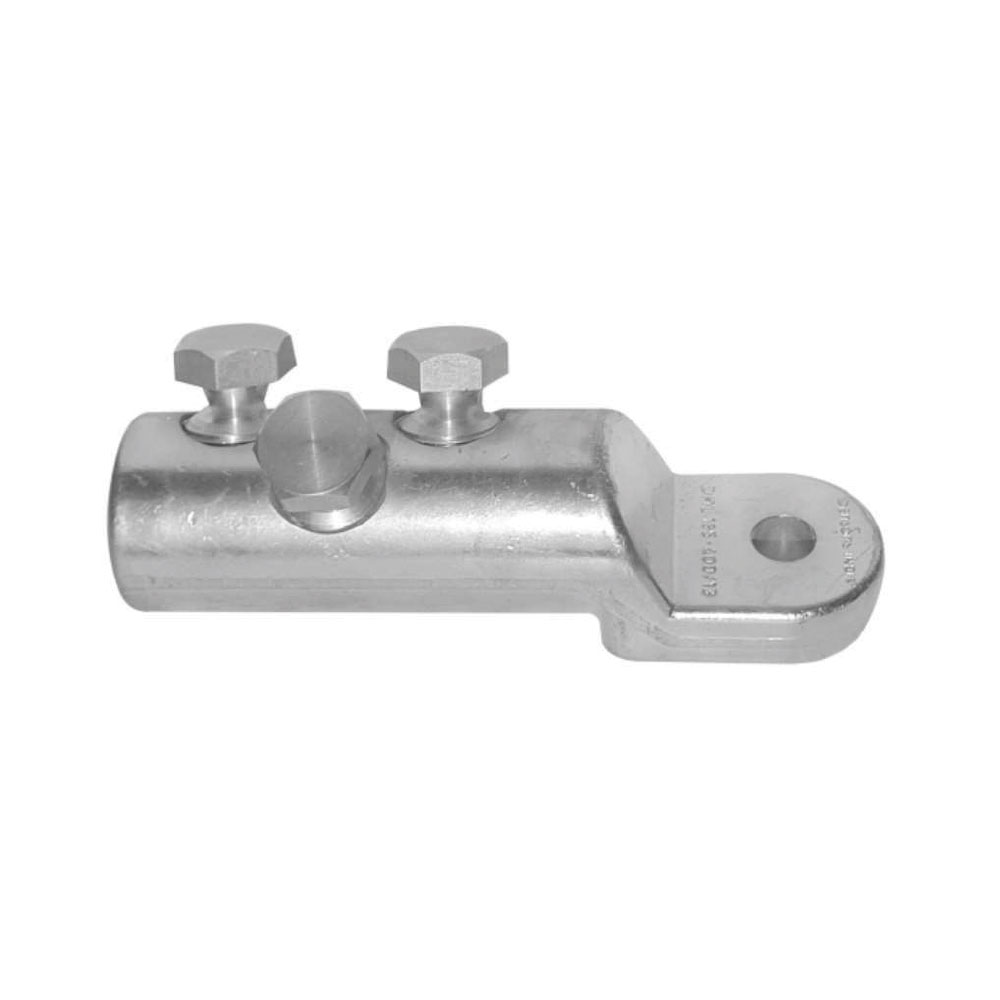

Shear Head Type Mechanical Lugs

Enquire Now

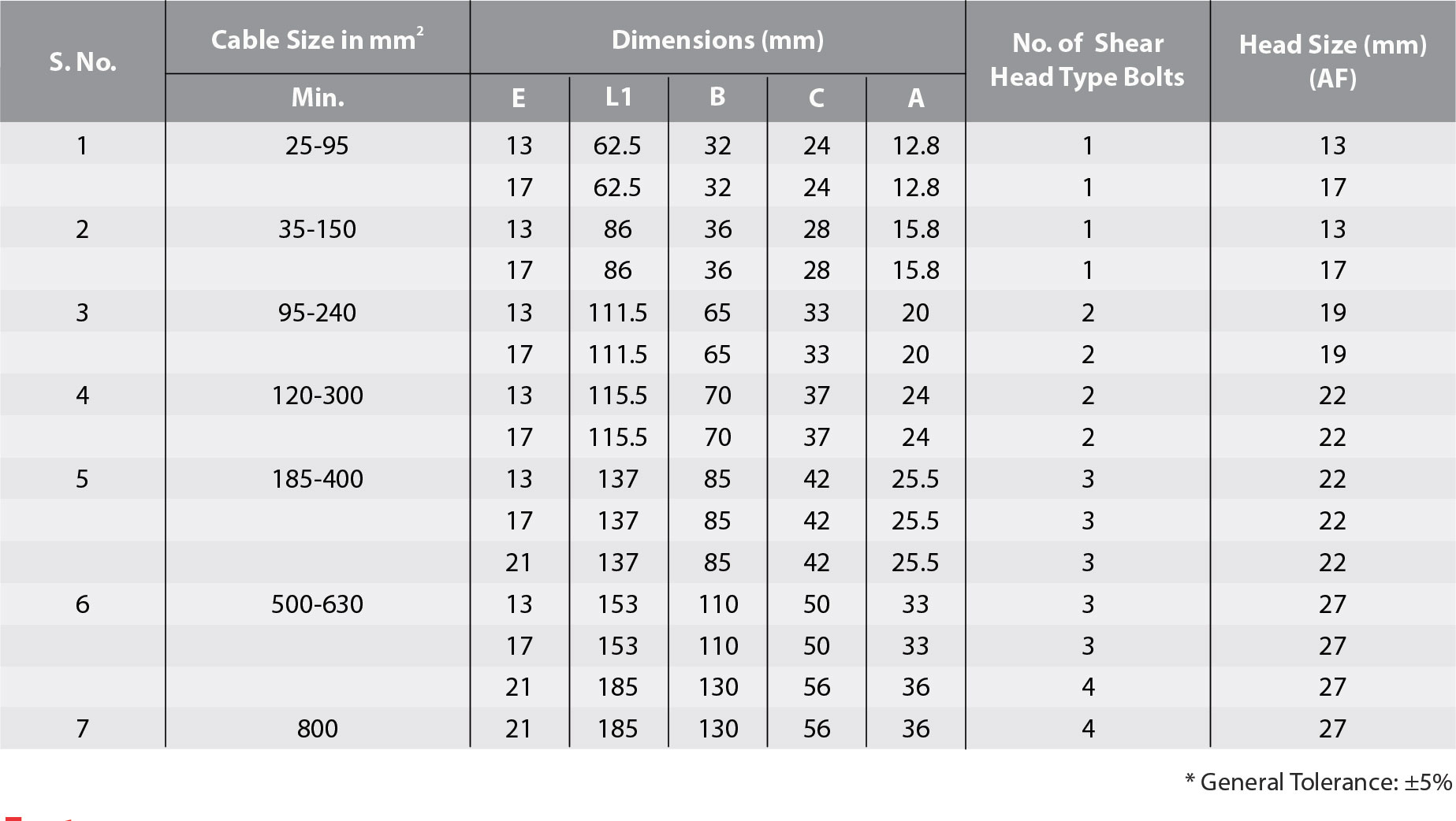

S. No.	Cable Size in mm²	Dimensions (mm)					No. of Shear Head Type Bolts	Head Size (mm) (AF)
S. No.	Min.	E	L1	B	C	A	No. of Shear Head Type Bolts	Head Size (mm) (AF)
1.	25-95	13	62.5	32	24	12.8	1	13
		17	62.5	32	24	12.8	1	17
2.	35-150	13	86	36	28	15.8	1	13
		17	86	36	28	15.8	1	17
3.	95-240	13	111.5	65	33	20	2	19
		17	111.5	65	33	20	2	19
4.	120-300	13	115.5	70	37	24	2	22
		17	115.5	70	37	24	2	22
5.	185-400	13	137	85	42	25.5	3	22
		17	137	85	42	25.5	3	22
		21	137	85	42	25.5	3	22
6.	500-630	13	153	110	50	33	3	27
		17	153	110	50	33	3	27
		21	185	130	56	36	4	27
7.	800	21	185	130	56	36	4	27

* General Tolerance: ±5%
