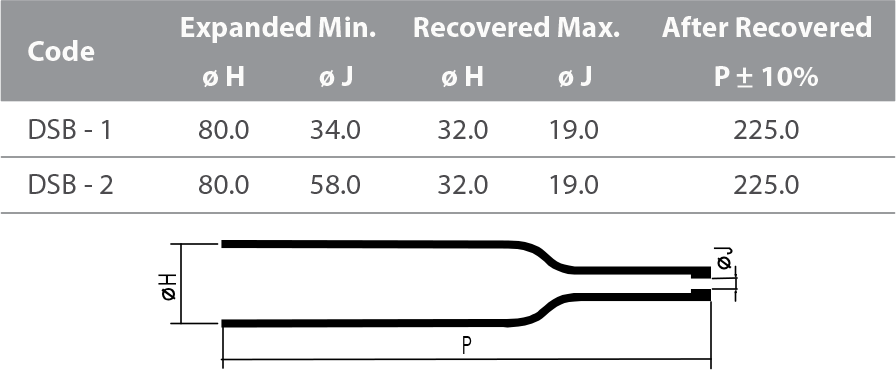

| Code | Expanded Min. | Recovered Max. | After Recovered | ||
|---|---|---|---|---|---|
| ø H | ø J | ø H | ø J | P + 10% | |
| DSB - 1 | 80.0 | 34.0 | 32.0 | 19.0 | 225.0 |
| DSB - 2 | 80.0 | 58.0 | 32.0 | 19.0 | 225.0 |

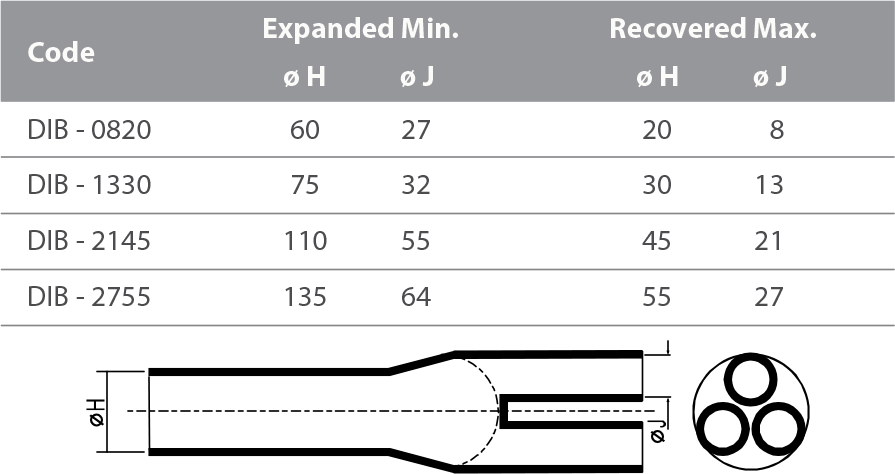

| Code | Expanded Min. | Recovered Max. | ||
|---|---|---|---|---|
| ø H | ø J | ø H | ø J | |
| DIB - 0820 | 60 | 27 | 20 | 8 |
| DIB - 1330 | 75 | 32 | 30 | 13 |
| DIB - 2145 | 110 | 55 | 45 | 21 |
| DIB - 2755 | 135 | 64 | 55 | 27 |

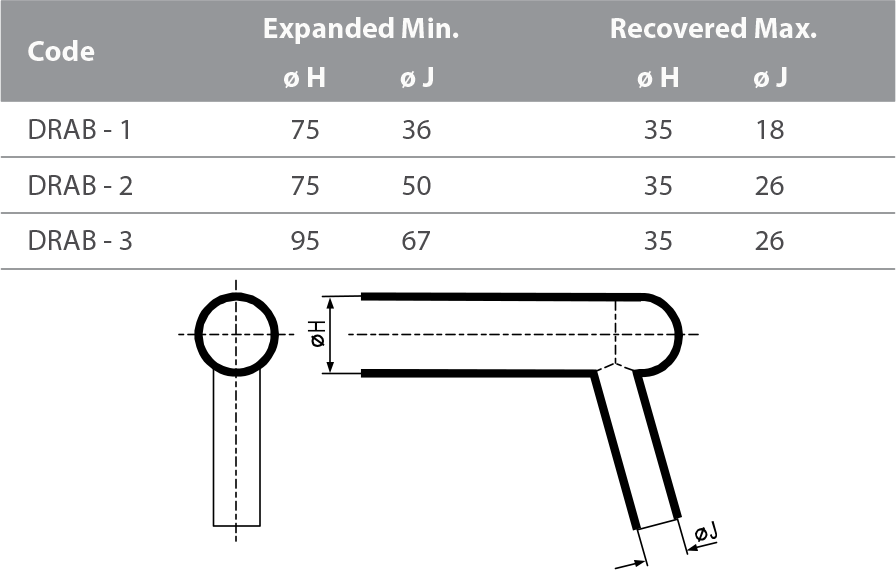

| Code | Expanded Min. | Recovered Max. | ||
|---|---|---|---|---|
| ø H | ø J | ø H | ø J | |
| DRAB - 1 | 75 | 36 | 35 | 18 |
| DRAB - 2 | 75 | 50 | 35 | 26 |
| DRAB - 3 | 95 | 67 | 35 | 26 |

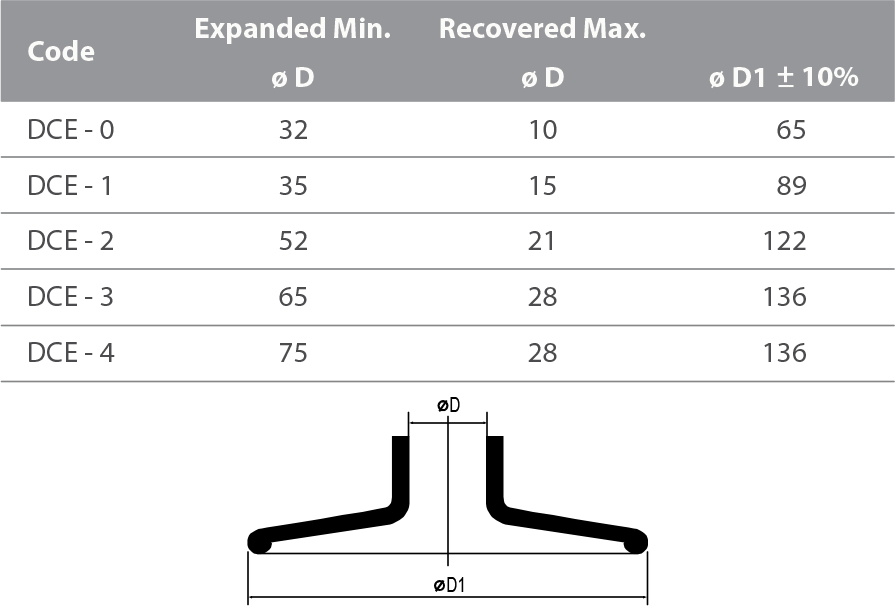

| Code | Expanded Min. ø D |
Recovered Max. ø D |
ø D1 + 10% |
|---|---|---|---|
| DCE - 0 | 32 | 10 | 65 |
| DCE - 1 | 35 | 15 | 89 |
| DCE - 2 | 52 | 21 | 122 |
| DCE - 3 | 65 | 28 | 136 |
| DCE - 4 | 75 | 28 | 136 |

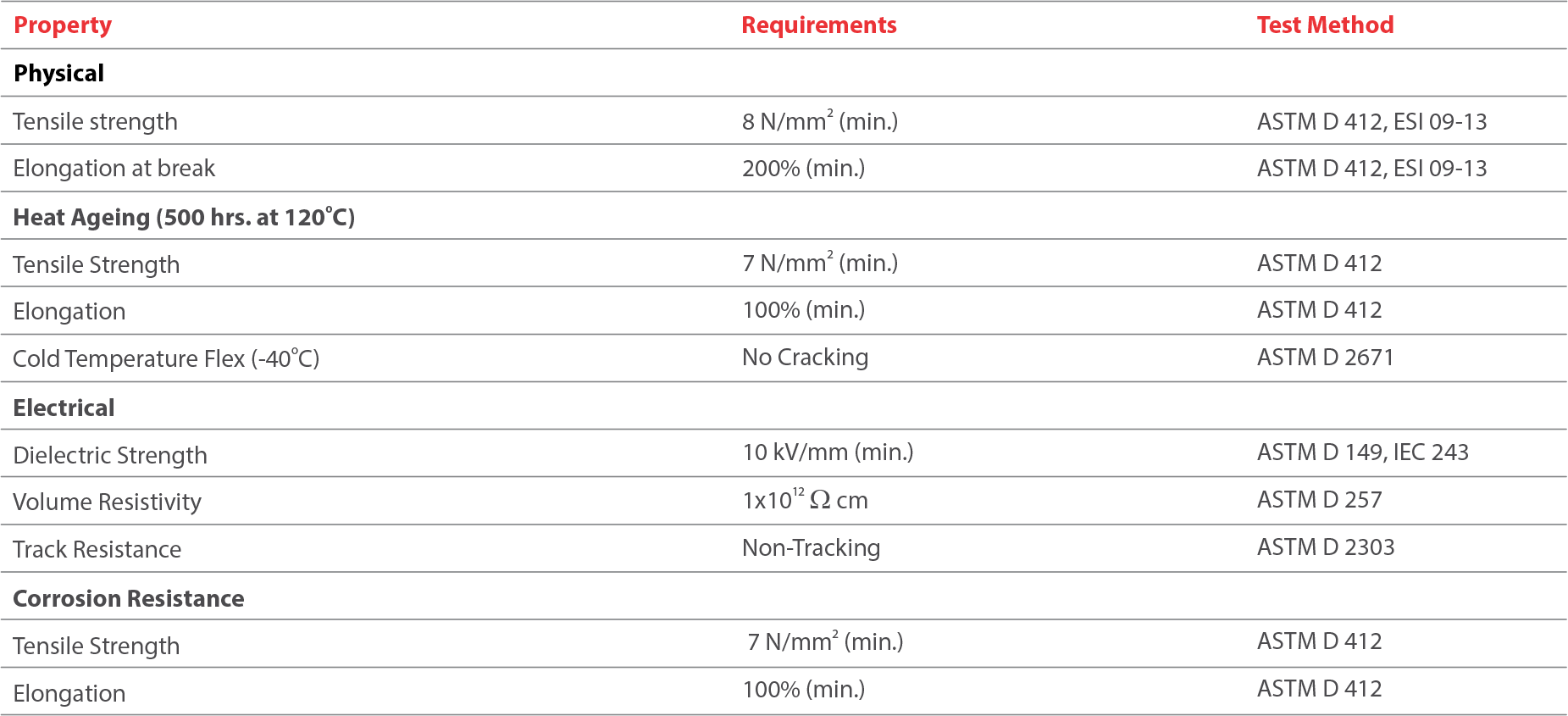

| Property | Requirements | Test Method |
|---|---|---|
| Physical | ||
| Tensile Strength | 8 N/mm (min.) | ASTM D 412, ESI 09-13 |
| Elongation at break | 200% (min.) | ASTM D 412, ESI 09-13 |
| Heat Ageing (500 hrs. at 120 C) | ||
| Tensile Strength | 7 N/mm (min.) | ASTM D 412 |
| Elongation | 100% (min.) | ASTM D 412 |
| Cold Temperature Flex (-40 C) | No Cracking | ASTM D 2671 |
| Electrical | ||
| Dielectric Strength | 10 kV/mm (min.) | ASTM D 149, IEC 243 |
| Volume Resistivity | 1x1012 cm | ASTM D 257 |
| Track Resistance | Non-Tracking | ASTM D 2303 |
| Corrosion Resistance | ||
| Tensile Strength | 7 N/mm (min.) | ASTM D 412 |
| Elongation | 100% (min.) | ASTM D 412 |
