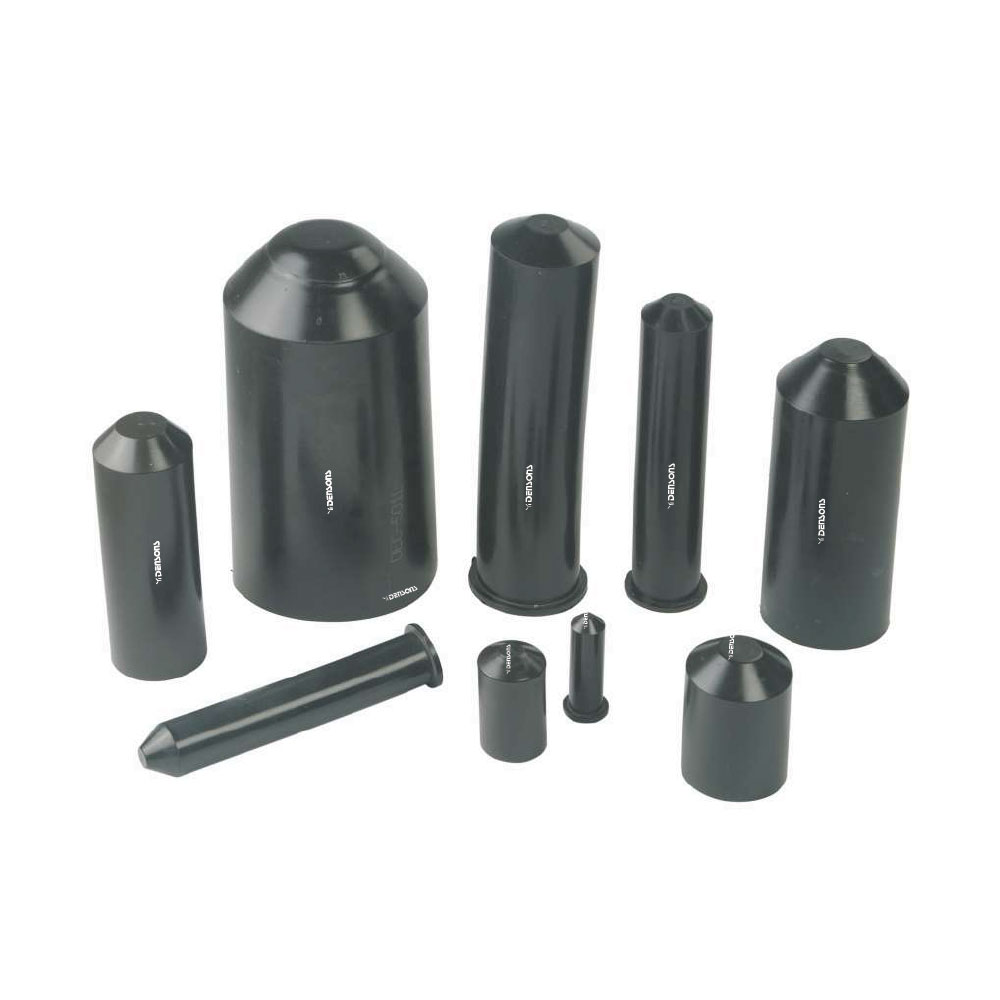

Heat Shrinkable Cable End Caps |
 |
 |
| |
 |
| Features |
|
|
- Effectively offering protection against oxidation, ozone,
UV radiation etc
- Coated with hot melt adhesive to ensure environment seal
- Easily to fit over the cable end
- Protect power cable up to 1000V and telecommunication
cable
- Material: Thermally stabilized cross-linked polyolefin,
coated with specially designed hot melt adhesive
- Minimum fully shrink temperature:120 oC
|
|

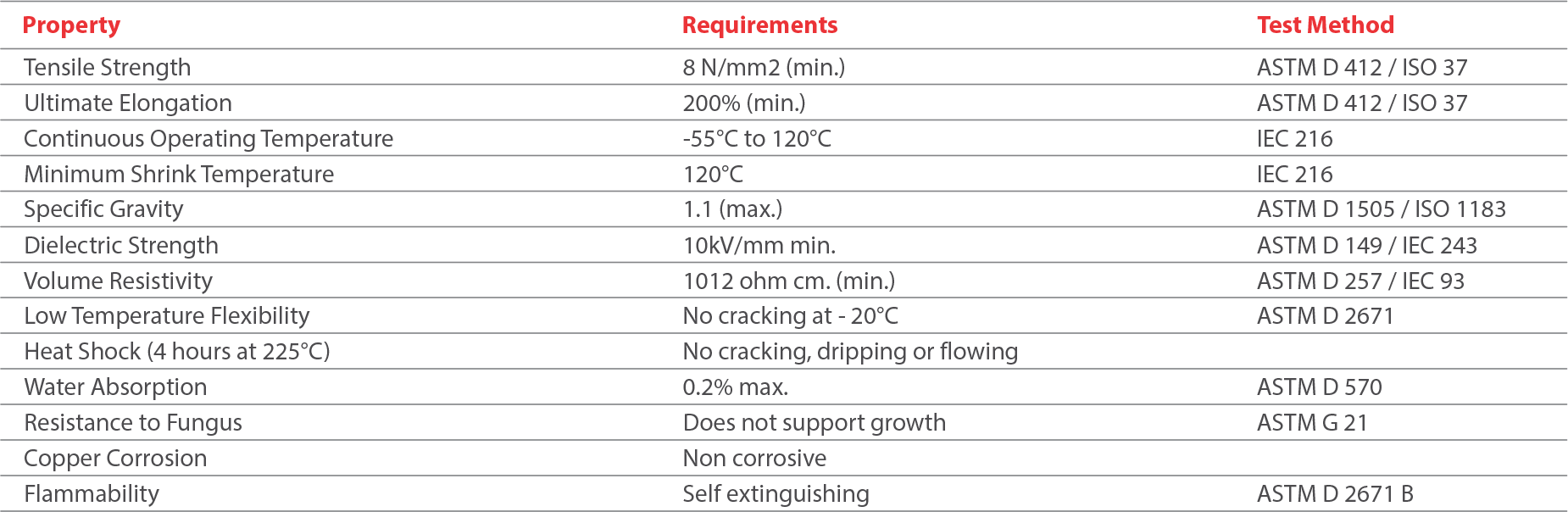

| Technical Data (for inner layer) |
|
|
| Property
|
Requirements |
Test Method |
| Physical |
|
|
| Tensile
Strength |
8 N/mm2 (min) |
ASTM D 412/ISO 37 |
| Ultimate
Elongation |
200% (min) |
ASTM D 412 / ISO 37 |
| Continuous
Operating Temperature |
-55o C
to 120o C |
IEC 216 |
| Minimum
Shrink Temperature |
120o C |
IEC 216 |
| Specific
Gravity |
1.1 Max. |
ASTM D 1505 / ISO 1183 |
| Dielectric
Strength |
10kV/mm min. |
ASTMD 149 / IEC 243 |
| Volume
Resistivity |
1012 Ohm Cm.
(min.) |
ASTM 257 / IEC 93 |
| Low
Temperature Flexibility |
No cracking at - 20o C |
ASTM D 2671 |
| Heat
Shock (4 hours at 225o C) |
No cracking, dripping or
flowing |
|
| Water
Absorption |
0.2% max |
ASTM D 570 |
| Resistance
to Fungus |
Does not support growth |
ASTM G 21 |
| Copper
Corrosion |
Non Corrosive |
|
| Flammability |
Self extinguishing |
ASTM D 2671 B |
|
| |
|

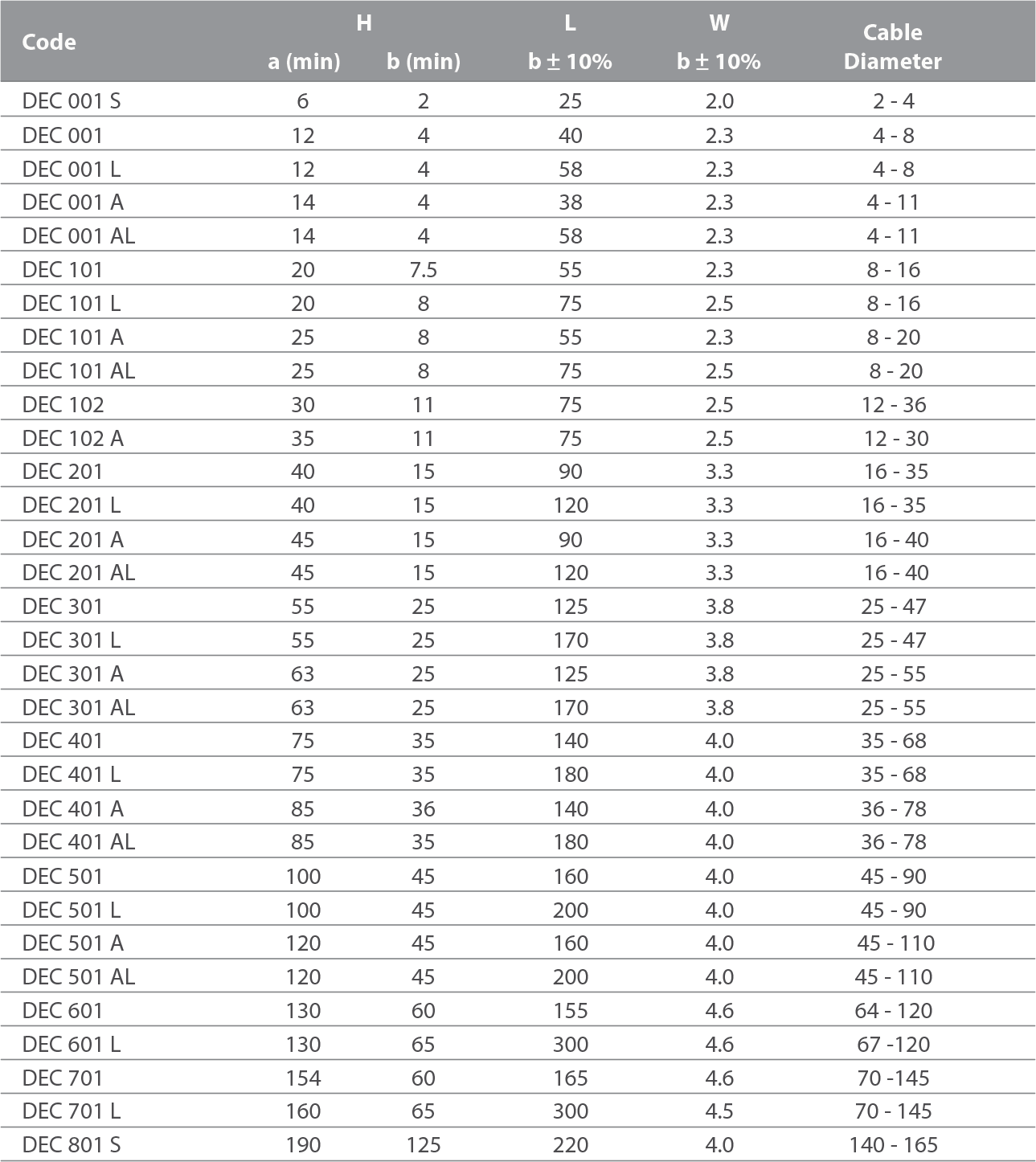

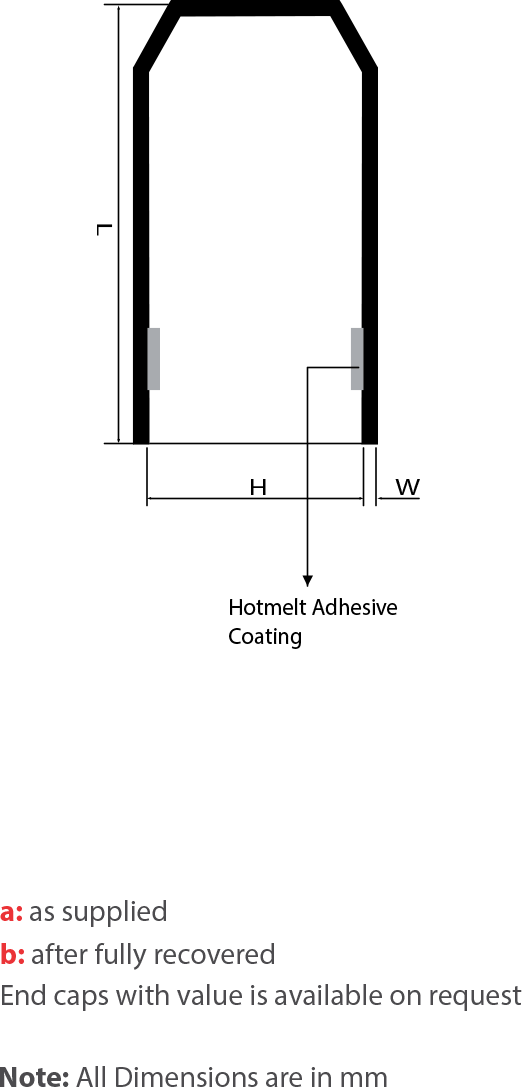

| Dimension Chart |
|
|
|
Code |
H |
L (mm)
|
W (mm)
|
Cable diameter
|
|
|
A (min) |
B (max) |
|
Standard
length end cap
|
|
DEC-1 Ø14/4.5 |
14
|
4.5
|
45
|
2.0
|
5-15
|
Enquiry |
|
DEC-2 Ø 25/8 |
25
|
8
|
70
|
2.3
|
10-20
|
Enquiry |
|
DEC-3 Ø 40/15 |
40
|
15
|
85
|
3.0
|
18-32
|
Enquiry |
|
DEC-4 Ø 55/25 |
55
|
25
|
110
|
3.3
|
28-48
|
Enquiry |
|
DEC-5 Ø 75/35 |
75
|
35
|
130
|
3.5
|
45-70
|
Enquiry |
|
DEC-6 Ø 100/50 |
100
|
50
|
155
|
4.0
|
55-90
|
Enquiry |
|
DEC-7 Ø 120/60 |
120
|
60
|
155
|
4.0
|
65-110
|
Enquiry |
|
DEC-8 Ø 160/80 |
160
|
80
|
155
|
4.0
|
90-150
|
Enquiry |
|
Extended
length end cap
|
|
DEC-1L Ø 14/4.5 |
14
|
405
|
65
|
2.0
|
5-12
|
Enquiry |
|
DEC-3L Ø 40/15 |
40
|
15
|
90
|
3.0
|
18-32
|
Enquiry |
|
DEC-4L Ø 55/25 |
55
|
25
|
145
|
3.3
|
28-48
|
Enquiry |
|
DEC-5L Ø 75/35 |
75
|
35
|
150
|
3.5
|
45-70
|
Enquiry |
|
DEC-6L Ø 100/45 |
100
|
45
|
165
|
4.0
|
50-90
|
Enquiry |
|
| |
|
