EPDM Cold Shrink Tube

Enquire Now

Features

  • Open ended Cold Shrink EPDM Material
  • Excellent moisture tight seals for termination & joints
  • Easy installation
  • Factory pre-expanded & assembled on removable core
EPDM Cold Shrink Tube

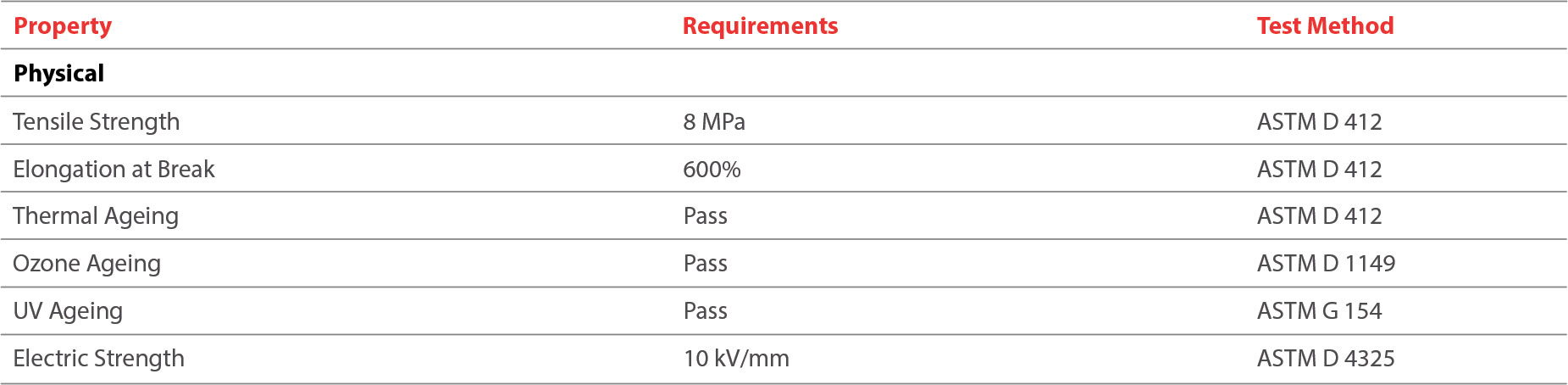

Technical Data for EPDM Cold Shrink Tube

Property Requirements Test Method
Physical
Tensile Strength 8 MPa ASTM D 412
Elongation at Break 600% ASTM D 412
Thermal Ageing Pass ASTM D 412
Ozone Ageing Pass ASTM D 1149
UV Ageing Pass ASTM G 154
Electric Strength 10 kV/mm ASTM D 4325

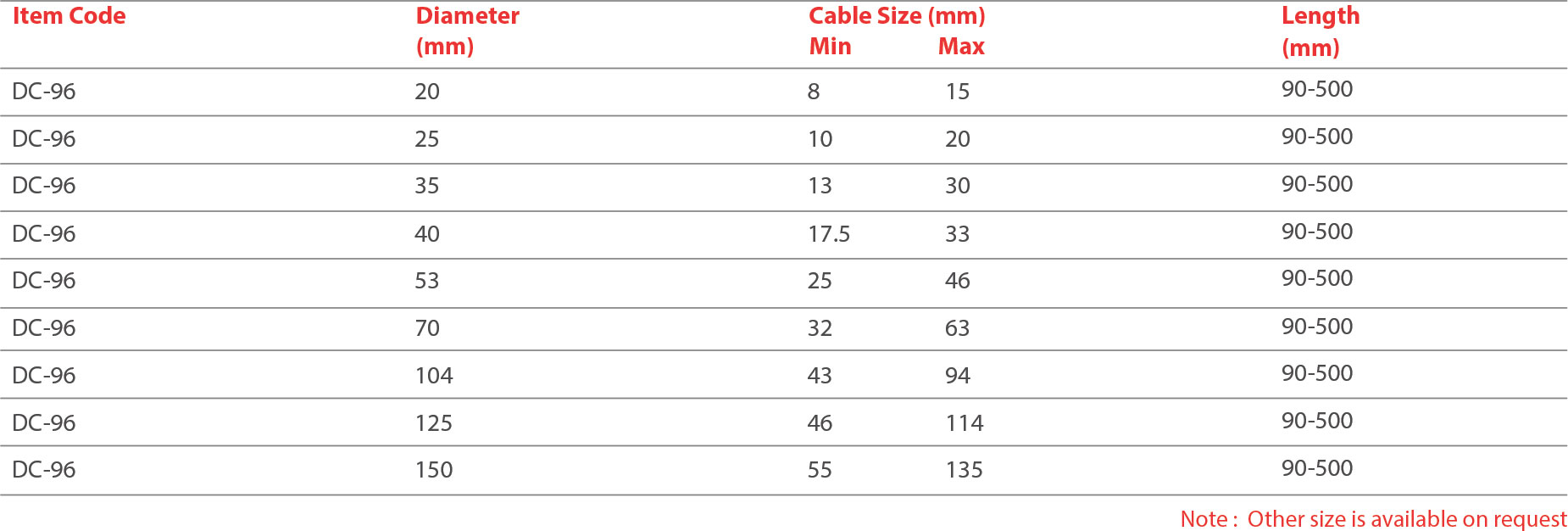

Dimension

Item Code Diameter(mm) Cable Size (mm) Length (mm)
Min Max
DC-96 20 8 15 90-500
DC-96 25 10 20 90-500
DC-96 35 13 30 90-500
DC-96 40 17.5 33 90-500
DC-96 53 25 46 90-500
DC-96 70 32 63 90-500
DC-96 104 43 94 90-500
DC-96 125 46 94 90-500
DC-96 150 55 135 90-500
